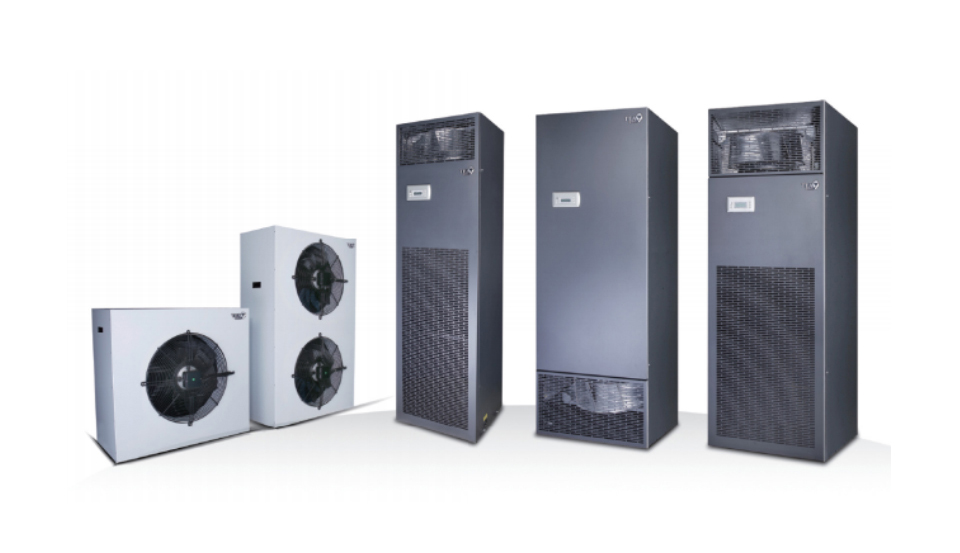

Capacity Range（35kW~80kW）



Application：



l Single rack with power larger than 3kW



l High heat density computer room



l Modular DC



l Container type DC



l DC with low PUE



l Hot spot reconstruction



Technical Features：



l High reliability



Providing Constant temperature & humidity, Cleanliness environment to ensure the main equipment run in good condition.



All-day running design can guarantee the main equipment safe operation.



All parts had passed severe test and confirmed stable and reliable before delivery.



l High energy efficiency



SHR(sensible heat ratio) is 100%



Compressor EER is larger than 3.3 and chilled water cooled unit



EER is larger than 25.



Target-specific design enables the air conditioner save more than 30% energy.



Return air temperature was raised about 6℃，which can save more



than 12% energy.



Supplying air precisely can reduce air flow pressure drop，which



can save more than 5% energy.



The internationally optimal compressor and fan can be more efficient.



Full cover evaporator achieves higher heat exchange efficiency.



Even-distributed fan can supply air evenly and obviously reduce



the air resistance.



Segment-based condensing water collecting design with the lowest



thermal resistance of water film and high heat exchange efficiency



Optimal air duct design makes the lowest air resistance and smallest fan power possible.



Inverter fan of ODU have longer working life and high energy efficiency.



Advanced control logic control to output cooling capacity according to cooling capacity demand and avoid competitive run.



l Easy maintenance



In-row installation.



Front-back maintenance.



Rolling wheel at the base makes transportation more convenient



Air filter with metal frame:



can be washed repeatedly, making maintenance cost lower.



Self-clean humidifier: less maintenance work



Individual control fan: easy installation and maintenance



l Multiple types



Wide cooling capacity range：air cooled unit（12.5kW~60kW）,chilled



water cooled unit（25kW~80kW）



Multiple cooling mode：air cooled, Freon pump, water cooled, glycol



cooled, chilled water cooled



Multiple air supply mode：45°single side supply, 45°dual side supply, front supply



Various dimensions：width in 300mm or 600mm



Multiple piping ways：piping upward or downward



Multiple refrigerant type：R410A, R407C,R22 for choice



Wide operating temperature range：standard type（-20℃~50℃）, low



temperature type（-40℃~50℃）



Customization: fit into special requirements
