product description

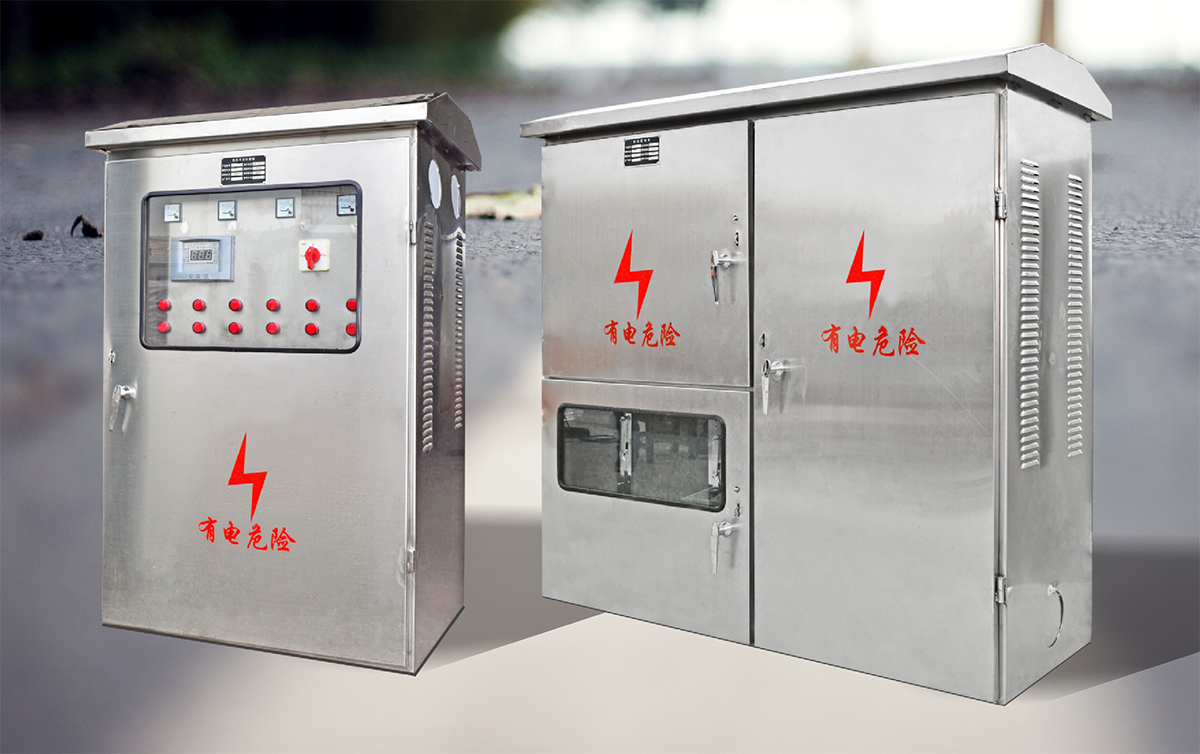

JP series integrated distribution box is designed according to the requirements of power grid construction and transformation and the experience of power grid operation, and based on the principles of safety, economy, rationality and reliability. It has functions such as power distribution, control, protection, reactive power compensation, and power measurement The new outdoor integrated distribution box can be added to the leakage protection function according to user requirements. The product has the advantages of novel and reasonable structure, high protection level, convenient installation and debugging, maintenance and repair. The product conforms to GB7251.1-1997, and has passed the 3C certification. It is an ideal low-voltage complete set of equipment in the current power grid transformation.



Features


The response is timely and fast, the compensation effect is good, and the work is reliable, and leakage protectors can also be added according to user needs;

Protection function: overvoltage, overload, undervoltage, undercurrent, short circuit, phase loss, zero-sequence automatic operation function, power outage is pushed out, and automatic recovery after a delay of 10s after power transmission;

It can improve the power factor of the grid to more than 0.95.

Convenience


1. Installation location: Indoor:

2. Altitude: ≤2000m:

3. Ambient temperature: -25. C～+45 °c, maximum temperature difference ≤25 °c:

4. Relative humidity: daily average ≤ 95%, monthly average ≤ 90%:

5. Earthquake resistance: Ⅷ degree, horizontal acceleration ≤ 0.25m/S², vertical acceleration ≤ 0.125m/S²:

6. Places without severe vibration and shock and without fire, chemical corrosion, and explosion hazards.

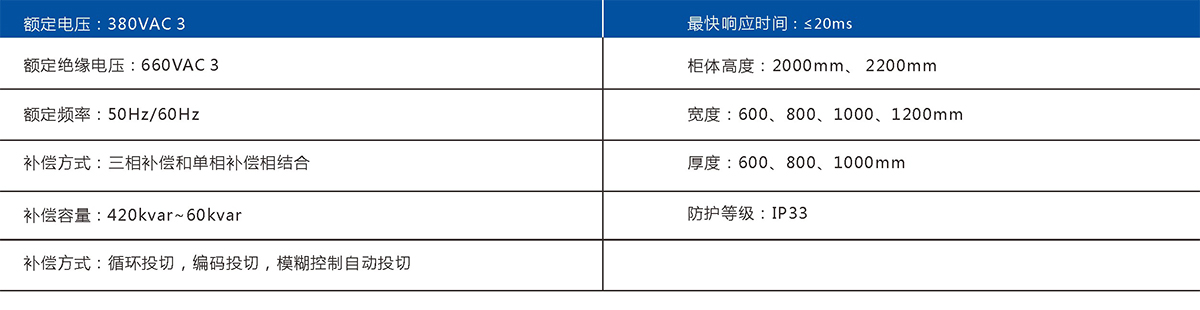

technical parameter
